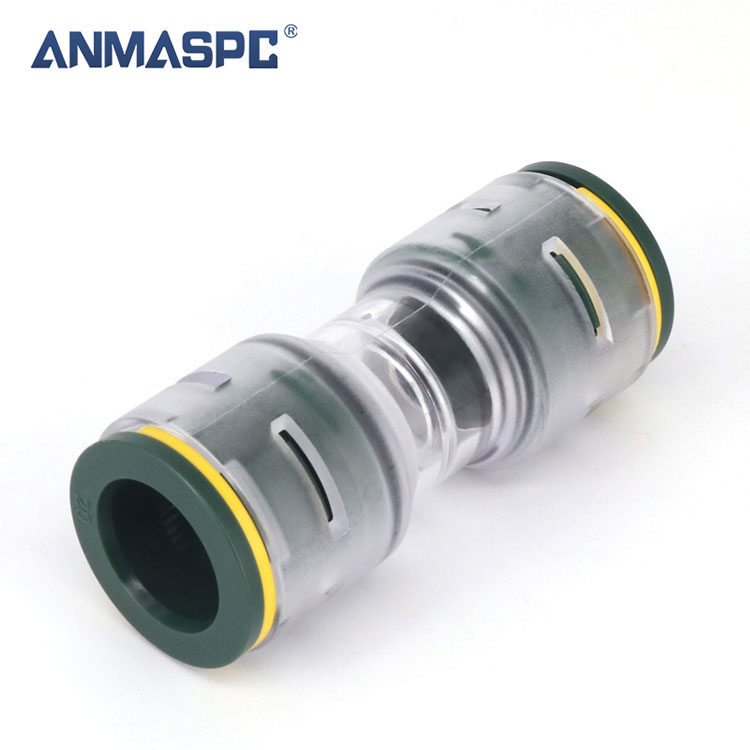

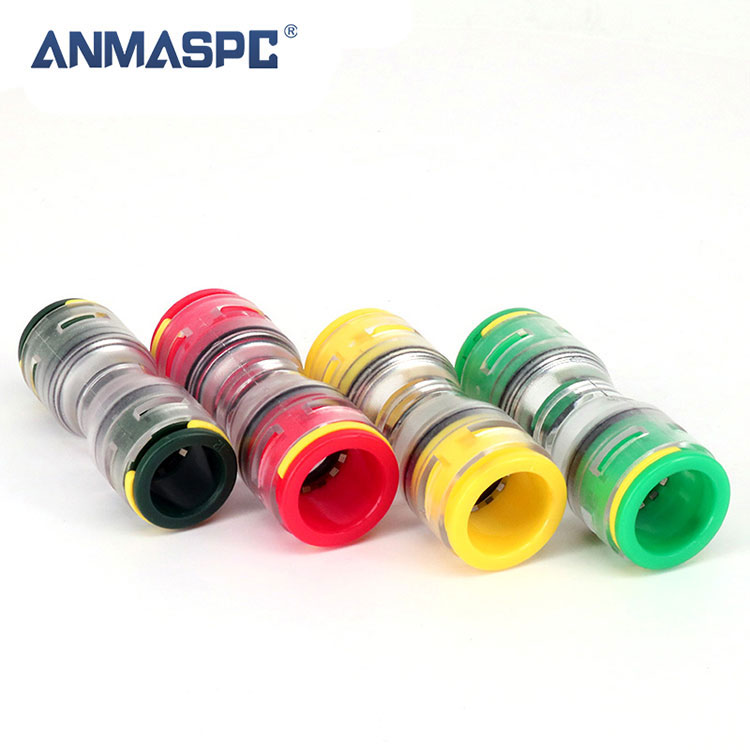

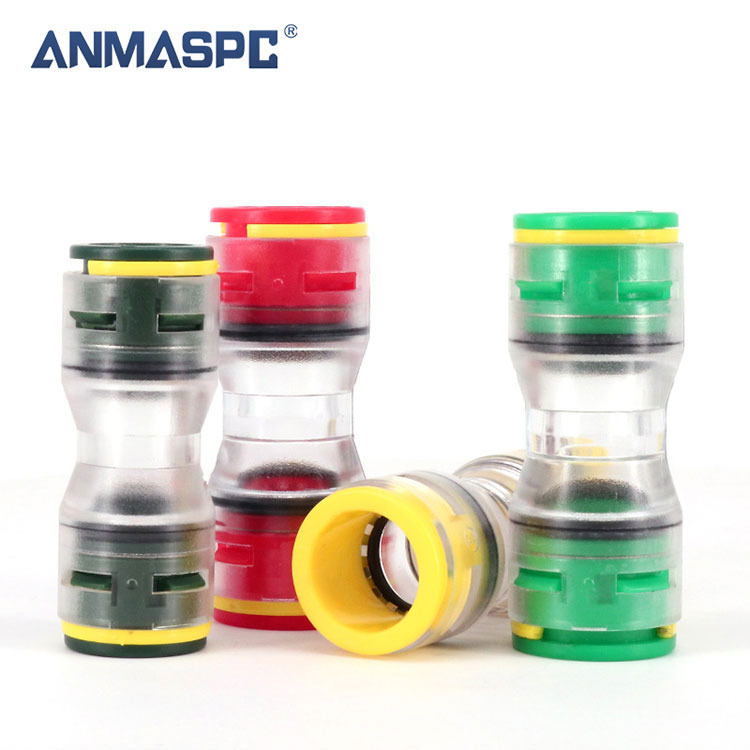

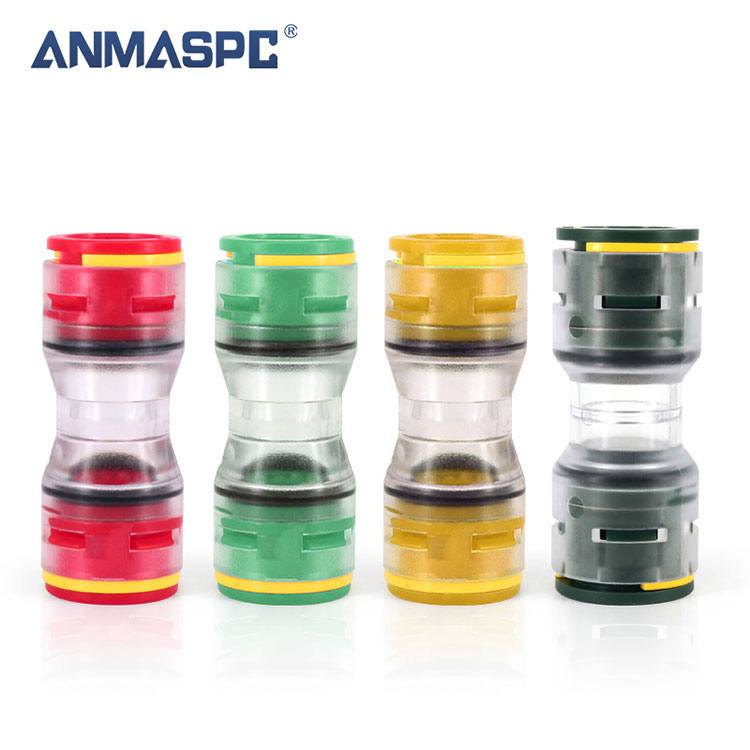

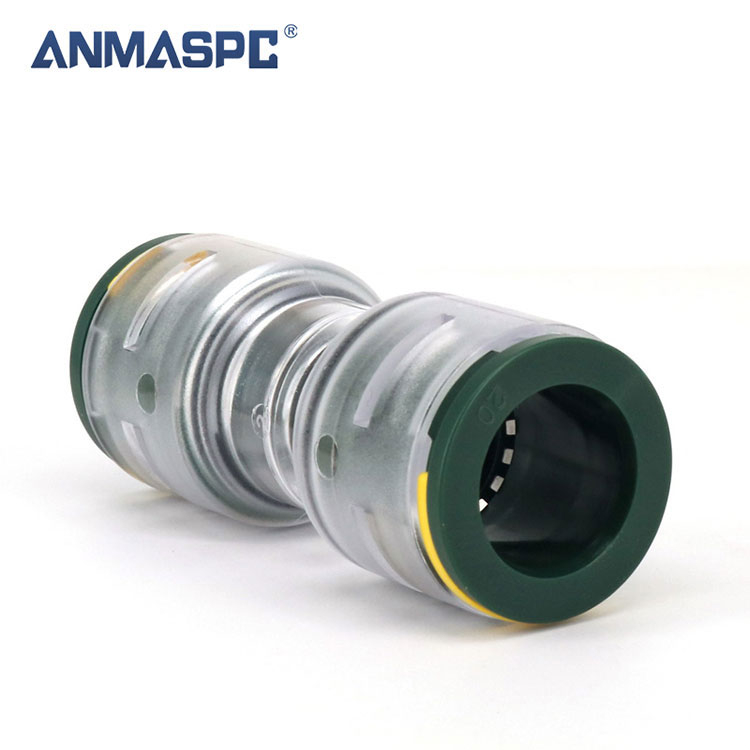

Penyambung Microduct Straight, yang menjamin prestasi yang baik. Badan lutsinar membolehkan pengesahan kedudukan saluran mikro di dalamnya. Klip keselamatan, jelas gangguan, telah dipasang terlebih dahulu. Diuji & mematuhi EN 50411-2-8.
① Klip keselamatan disertakan
② Teknologi push-fit
③ Tekanan Kerja: maks. 25 bar
![]() |
![]() |
Komponen | ||||
1 | Collet | POM | ||||
2 | Klip Mengunci | POM | ||||
3 | Kartrij | ALOI ZINK | ||||
4 | Cakar Kunci | SUS301/304 | ||||
5 | Cincin Sokongan | POM | ||||
6 | Cincin Meterai | TEP | ||||
7 | Badan | PC2807 | ||||
Fit Tiub | ||||||
Bahan paip | HDPE.PE.Nylon.Polyuretana | |||||
Diameter luar paip | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16 | |||||
Parameter Teknikal | ||||||
Bekerja dengan cecair | Udara | |||||
Sesak | 0.15~0.8MPa Tiada Kebocoran | |||||
Tarik pesta | 400N | |||||
Tekanan bukti | 2.5MPa | |||||
Julat tekanan operasi | 0~1.6MPa | |||||
Suhu persekitaran dan suhu bendalir | -40~60 ℃ | |||||
Suhu Pemasangan | -10 ℃/+50 ℃ | |||||
Suhu Tiupan yang Disyorkan | -15℃/+35℃ | |||||
Darjah perlindungan | IP68 | |||||
Gred tahan UV | F1 | |||||
Daya sisipan | 50N maks(5kg) | |||||
Jangka hayat: | 25 tahun | |||||
Piawaian: | EN 50411-2-8 |
Kod ANMASPC | Paip OD/ID | Paip OD/ID | Hol tiruse |
FPU3/2.1 | 3/2.1 | 3/2.1 | 2.1 |
FPU4/2.5 | 4/2.5 | 4/2.5 | 2.5 |
FPU4/2.8 | 4/2.8 | 4/2.8 | 2.8 |
FPU5/2.1 | 5/2.1 | 5/2.1 | 2.1 |
FPU5/3.5 | 5/3.5 | 5/3.5 | 3.5 |
FPU6/4 | 6/4 | 6/4 | 4 |
FPU7/3.5 | 7/3.5 | 7/3.5 | 3.5 |
FPU7/4 | 7/4 | 7/4 | 4 |
FPU7/5.5 | 7/5.5 | 7/5.5 | 5.5 |
FPU8/3.5 | 8/3.5 | 8/3.5 | 3.5 |
FPU8/6 | 8/6 | 8/6 | 6 |
FPU10/6 | 10/6 | 10/6 | 6 |
FPU10/8 | 10/8 | 10/8 | 8 |
FPU12/8 | 12/8 | 12/8 | 8 |
FPU12/10 | 12/10 | 12/10 | 10 |
FPU14/10 | 14/10 | 14/10 | 10 |
FPU14/12 | 14/12 | 14/12 | 12 |
FPU16/12 | 16/12 | 16/12 | 12 |
FPU16/13 | 16/13 | 16/13 | 13 |
FPU16/14 | 16/14 | 16/14 | 14 |
![]() |
||||||
Model | A | B | C | D | E | F |
FPU03 | 31.9 | 6.9 | 10 | 11.1 | 3.2 | 2.1 |
FPU04 | 31.9 | 6.9 | 10 | 11.1 | 4.2 | 2.8/2.5 |
FPU05 | 35.4 | 8.9 | 12 | 12.8 | 5.2 | 3.5/2.1 |
FPU06 | 35.4 | 8.9 | 12 | 12.8 | 6.2 | 4.0 |
FPU07 | 41.0 | 11.5 | 14.1 | 15.4 | 7.2 | 5.5/4/3.5 |
FPU08 | 41.0 | 11.5 | 14.1 | 15.4 | 8.2 | 6/3.5 |
FPU10 | 42.0 | 14.0 | 17.5 | 18.3 | 10.2 | 08/06 |
FPU12 | 49.5 | 15.8 | 19.2 | 20.7 | 12.2 | 10/08 |
FPU14 | 50.5 | 18.0 | 22.2 | 23 | 14.3 | 12/10 |
FPU16 | 55.0 | 20.0 | 24.7 | 25.1 | 16.2 | 14/13/12 |
